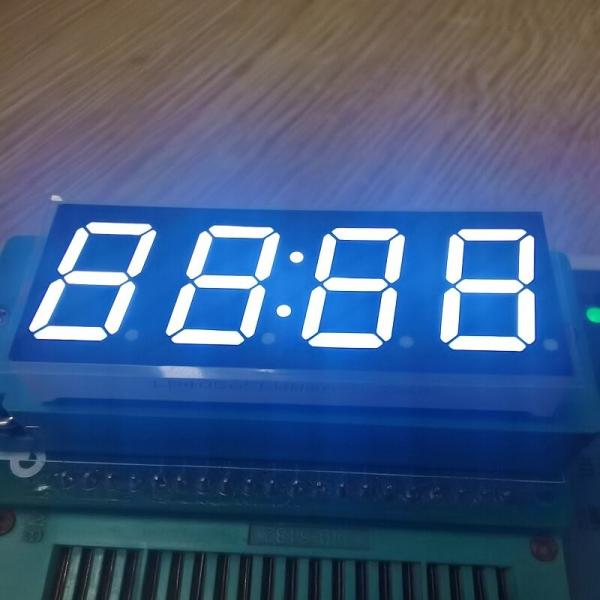

Product Specifications
Digit Height: 0.56 inches
Available Colors: Red, Blue, Yellow Green, Pure Green, Pure White, Amber, Orange
Features: High-luminous intensity, low-current operation, RoHS compliant
Product Range
- Digit Sizes: 0.25" to 20"
- Digit Numbers: 1, 2, 3, 4, 5 and 6 digits
- Segment Types: 7 segment, 14 segment and 16 segment
- Available Colors: Red, Yellow-green, Green, Blue, Yellow, Pink, White, Bi-color
- Surface Colors: Black, Gray or Red
Key Features
- White segment with black surface
- High luminous intensity
- Low current operation
- Stable performance
- Continuous uniform segments
- Easy mounting on PCB
- IC compatible
- RoHS compliant
Applications
- Audio equipment and instrument panels
- Digital indicators
- Multimedia products
- Bank exchange rate displays
- LED clock displays
- Gas station displays and various equipment/machine displays
- Industrial equipment: ovens, test equipment, analytical instruments, process control systems, temperature controllers, PLCs, security systems
Technical Specifications
Absolute Maximum Ratings (Ta=25ºC)
| Parameter |
Symbol |
Ratings |
Unit |
| Forward Current (per dice) |
Ipm |
20 |
mA |
| Reverse Voltage (per dice) |
Vr |
5 |
V |
| Power Dissipation (per dice) |
Pm |
80 |
mW |
| Operating Temperature Range |
Topr |
-40~+85 |
ºC |
| Storage Temperature Range |
Tstg |
-40~+85 |
ºC |
| Solder Temperature (≤3 seconds) |
Th |
260 |
ºC |
Electrical Characteristics by Color Code
Yellow Green (J)
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.4 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensity |
Iv |
If=10mA |
30 |
|
40 |
mcd |
| Spectrum Width Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
| Wavelength |
Dλ |
If=10mA |
569 |
|
574 |
nm |
Amber/Yellow (Y)
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.5 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensity |
Iv |
If=10mA |
60 |
|
80 |
mcd |
| Spectrum Width Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
| Wavelength |
Dλ |
If=10mA |
585 |
|
595 |
nm |
Orange (F)
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.4 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensity |
Iv |
If=10mA |
60 |
|
80 |
mcd |
| Spectrum Width Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
| Wavelength |
Dλ |
If=10mA |
600 |
|
605 |
nm |
Super Bright Red (R)
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.2 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensity |
Iv |
If=10mA |
50 |
|
60 |
mcd |
| Spectrum Width Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
| Wavelength |
Dλ |
If=10mA |
630 |
|
635 |
nm |
Ultra Bright Red (UR)
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.2 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensity |
Iv |
If=10mA |
80 |
|
100 |
mcd |
| Spectrum Width Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
| Wavelength |
Dλ |
If=10mA |
625 |
|
635 |
nm |
Pure Green (G)
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
2.6 |
|
3.2 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensity |
Iv |
If=10mA |
120 |
|
180 |
mcd |
| Spectrum Width Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
| Wavelength |
Dλ |
If=10mA |
515 |
|
525 |
nm |
Ultra Bright Blue (BH)
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
2.8 |
|
3.2 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensity |
Iv |
If=10mA |
120 |
|
140 |
mcd |
| Spectrum Width Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
| Wavelength |
Dλ |
If=10mA |
460 |
|
465 |
nm |
Ultra Bright White (WH)
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
2.8 |
|
3.2 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
| Luminous Intensity |
Iv |
If=10mA |
120 |
|
140 |
mcd |
| LED Color Temperature |
K |
If=10mA |
5500 |
20 |
6800 |
K |
| Chromaticity Coordinates |
X/Y |
If=10mA |
0.29,0.32 |
|
0.30,0.33 |
nm |
Product Applications
7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.
