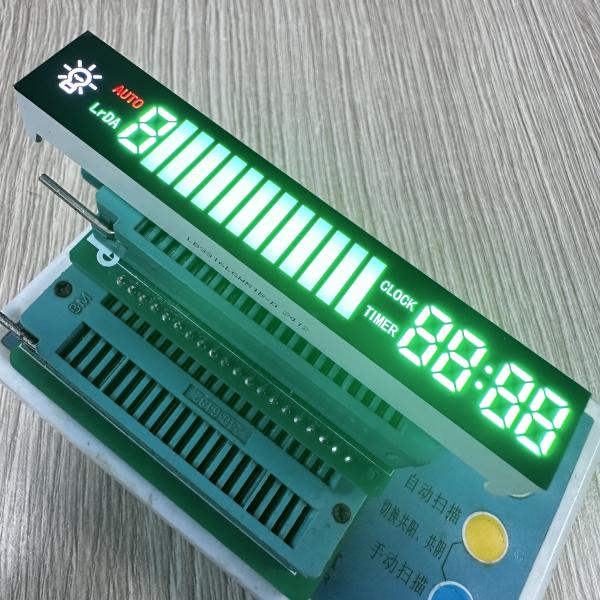

ULTRA BRIGHT GREEN/RED COMMON ANODE CUSTOM 7SEGMENT LED DISPLAY FOR KITCHEN HOOD

  • 1
  • 2

Brand Name : LIGHTBO

Model Number : LB9316IGR1B-D

Certification : ISO9001&ROHS

Place of Origin : SHENZHEN，CHINA

MOQ : 1000

Payment Terms : TT,Western Union

Supply Ability : 50000pcs/days

Delivery Time : 15-20days

Packaging Details : EPE+Carton

Price : Negotiate

Package Dimensions : 93*16mm

Polarity : Common Anode

Emitting Colour : Green/Red

Display Brightness : Ultra Bright

Digits : 5

Material : PCB,Epoxy,LED Chip,plastic

Usage : Indoor/Outdoor

Application : kitchen hood

Operating temperature : -40~105 ℃

Life span : 80000hours

Forward Current : 20mA

Contact Now

LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25℃

Product Feature:
  • Forward voltage (high luminous intensity output)
  • Low power consumption
  • Extremely low current
  • Luminous evenly distributed on each segment
  • Industrial standard size
  • Provides excellent reliability in bright ambient light
  • Stable performance
  • Long lifetime
  • Meet RoHS/REACH compliant
Applications:
  • Audio equipments or instrument panels
  • Home electronic appliances
  • Numeric displays
  • Multimedia products
  • General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on
Applications:
  • Widely used for air conditioner ,cooling ,heating ,instrument panels and so on .
Absolute Maximum Ratings(Ta=25ºC)
Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature(≤3 seconds) Th 260 ºC
Code:Yellow Green- J
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.4 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 30
40 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 569
574 nm
Code:Amber/Yellow -Y
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.5 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 60
80 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 585
595 nm
Code:Orange -F
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.4 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 60
80 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 600
605 nm
Code:Super Bright Red -R
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 50
60 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 630
635 nm
Code:Ultra Bright Red -UR
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 80
100 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 625
635 nm
Code:Pure Green -G
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6
3.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 120
180 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 515
525 nm
Code:Ultra Bright Blue -BH
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8
3.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 120
140 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 460
465 nm
Code:Ultra Bright White -WH
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8
3.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensty Iv If=10mA 120
140 mcd
LED color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32
0.30,0.33 nm
Products Applications

ULTRA BRIGHT GREEN/RED COMMON ANODE CUSTOM 7SEGMENT LED DISPLAY FOR KITCHEN HOOD

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances,tempearture indicators, humidity indicators, refrigerator controller,thernostats indicator,heating and cooling control and so on

Certifications

ULTRA BRIGHT GREEN/RED COMMON ANODE CUSTOM 7SEGMENT LED DISPLAY FOR KITCHEN HOOD

Office and Factory Overview

ULTRA BRIGHT GREEN/RED COMMON ANODE CUSTOM 7SEGMENT LED DISPLAY FOR KITCHEN HOOD

ULTRA BRIGHT GREEN/RED COMMON ANODE CUSTOM 7SEGMENT LED DISPLAY FOR KITCHEN HOODULTRA BRIGHT GREEN/RED COMMON ANODE CUSTOM 7SEGMENT LED DISPLAY FOR KITCHEN HOOD

ULTRA BRIGHT GREEN/RED COMMON ANODE CUSTOM 7SEGMENT LED DISPLAY FOR KITCHEN HOOD

Company Exhibitions

ULTRA BRIGHT GREEN/RED COMMON ANODE CUSTOM 7SEGMENT LED DISPLAY FOR KITCHEN HOODULTRA BRIGHT GREEN/RED COMMON ANODE CUSTOM 7SEGMENT LED DISPLAY FOR KITCHEN HOOD

SHIPPING SERVICES

ULTRA BRIGHT GREEN/RED COMMON ANODE CUSTOM 7SEGMENT LED DISPLAY FOR KITCHEN HOOD

ULTRA BRIGHT GREEN/RED COMMON ANODE CUSTOM 7SEGMENT LED DISPLAY FOR KITCHEN HOOD

FAQ
Q1 Are you trading company or manufacturer
A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .
Q2 What is your main products
A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .
Q3 What is your MOQ
A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .
Q4 Before placing order, Can I get some samples for test
A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5 How long is your delivery time
A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days .
Q6 What is your terms of payment
A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.
Q7 Can you quote me FOB prices
A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.
Q8 How can I get your catalogue and price list
A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .
Q9 Can I negotiate the prices
A: Yes, we may consider discounts for bulk orders.
Q10 How much will the shipping charges be
A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
Q11 Can you do custom design products
A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.
Q12 If I send my design , can you make it for myself only ,and will not show it to any one else
A: Yes , we will not show it or sell to others without your authorization.
Q13 IWhat will be the samples lead time for customzied products
A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .
Q14 What is the shipping methods
A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.
Q15 How do you ensure the quality of your products
A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
