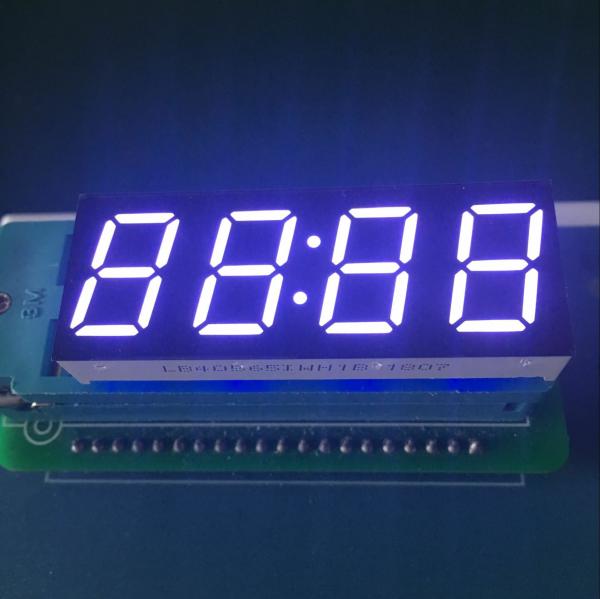

Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output

Name: Common Anode Digital Clock Display 056 Inch High Luminous Intensity Output
Brand: LIGHTBO
Price: 1 USD

Wholesale Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output from china suppliers

Brand Name : LIGHTBO

Model Number : LB40565IWH1B

Certification : RoHS&SGS&ISO

Place of Origin : Shenzhen,China

MOQ : 1000PCS

Price : negotiable

Payment Terms : TT in advance& Western Union

Supply Ability : 50000PCS/Day

Delivery Time : 10-15Days

Packaging Details : EPE+CARTON

Digit height : 14.2mm (0.56 inch)

Packing size : 50.3 x 19 x 8mm

Polarity : Common Anode

Color : Ultra bright white

Contact Now

Good consistency Ultra white 0.56" LED Clock Display common Anode for oven timer

Product Descriptions:

Digital height: 14.2mm (0.56 inch)
Packing size: 50.3 x 19 x 8mm
Polarity: Common anode
White segment black face
LED Color:ultra bright white
Luminous intensity:80-100mcd
Forward voltage:2.8-3.5V/led
Forward current:10-15mA/led
Emittinf Colors: red, blue, green, amber, orange, white and yellow

Product Features:

RoHS Directive-compliant
High luminous intensity output
High-efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Easy assembly
IC Compatible
Long lifespan
OEM and ODM orders are accepted

Applications:

Widely used in set-top boxes,home appliances and instrument panels,clock displays,digital timers,and numeric displays.

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+85	℃
Storage Temperature Range	Tstg	-40～+85	℃
Solder Temperature(3 sec)	Th	260	℃
